Trim to Fit – Contour Installation

A complete drawer organizer that fills the drawer completely.

Contour was designed to provide edge-to-edge functionality in any drawer and in any size. Contour’s unique Trim-to-Fit installation ensures the whole drawer is utilized – both functionally and aesthetically.

When planning to use Contour in your closet designs, it is good to understand how it is installed and the sizing requirements from component to component.

Drawer Size

Typically we refer to drawer sizes by the SPACE they are being placed into such as a 24″ or 36″ wide section with 16″ or 20″ deep partitions.

The physical size of the drawer front and the interior dimensions of the drawer box vary depending on style of front, material thickness, and by individual closet company standards.

Contour products are based on this SPACE dimension however the actual product size is based on the interior measurements of a typical drawer for that space.

For example: A 36″ drawer for a 16″ shelf depth has been selected to receive a Contour Jewelry Organizer.

The Contour Jewelry Organizer is designated as up to 36″ however the actual size of the components are  34 7/16″ (570mm) Width x 14 7/16″ (366mm) Depth to fit maximum internal dimensions of 34 1/2″ x 14 1/2″. Note that the size difference of approx. 1/16″ allows for some room for alignment and moving components freely.

These maximum dimensions do not limit the use of Contour on smaller drawers as Contour can be placed in any size drawer through simple re-sizing of the materials.

Contour organizers will fit any drawer size 36″ x 20″ and under.

Trim-to-Fit

Simple installation to fit any size drawer.

The channels and dividers can be cut with a fine toothed saw blade and the liners are easily trimmed with a razor knife.

Drawer liners are constructed of soft, strong faux leather and can be trimmed with a utility knife. Trim 2mm shorter than width and depth to ensure proper fit.

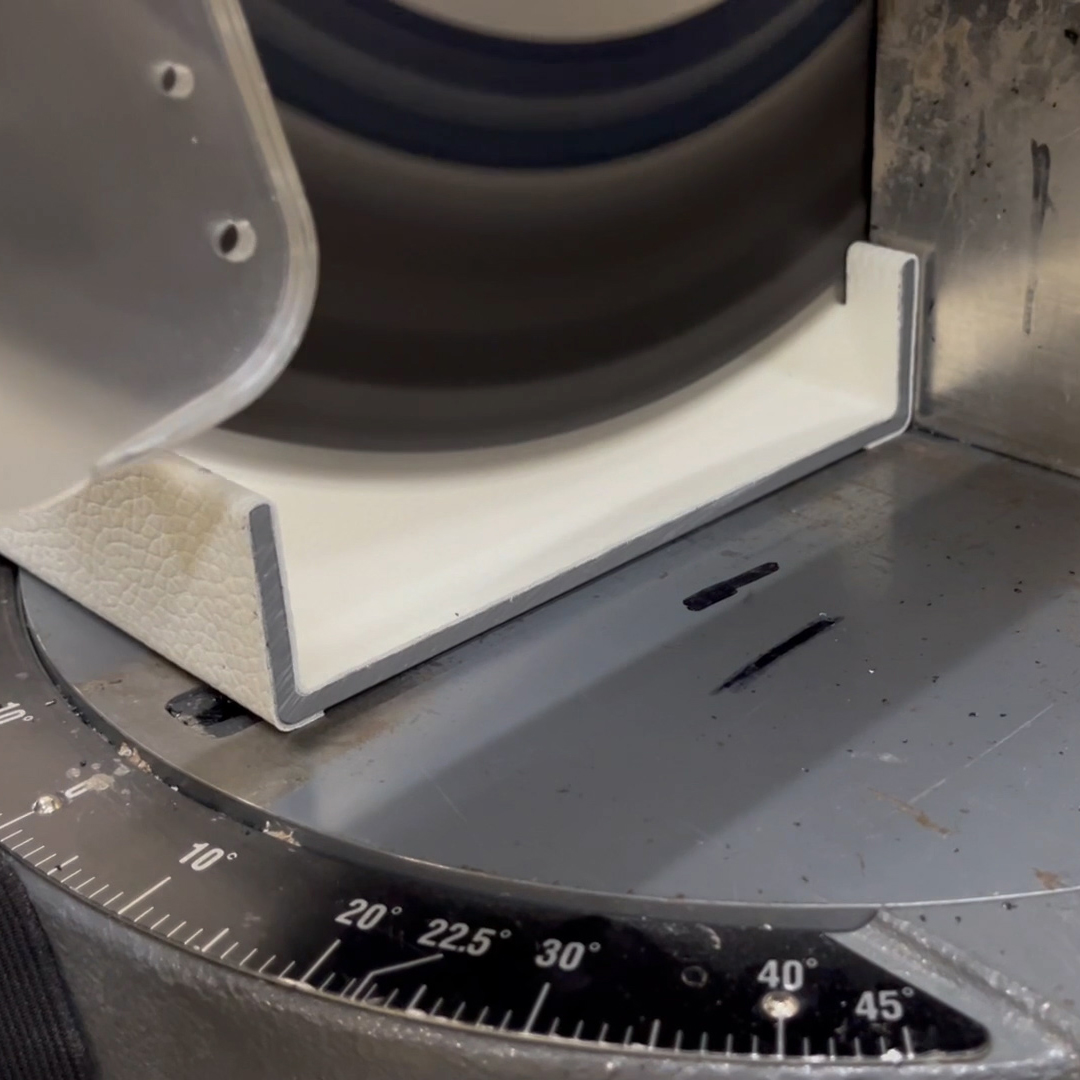

Trim organizer insert channels with a fine tooth saw blade – typically 2mm shorter than drawer depth to allow for smooth adjustments.

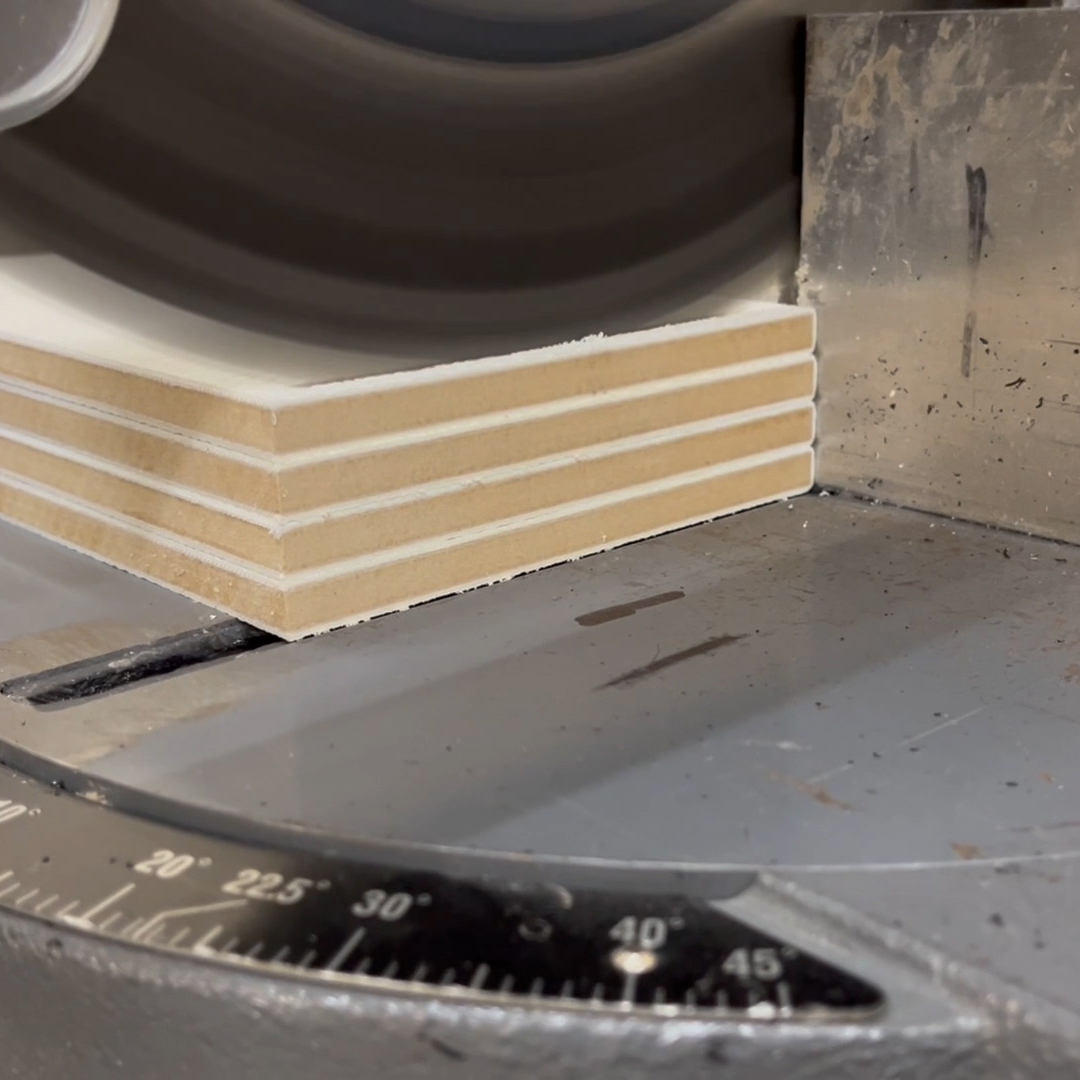

Drawer dividers are wood material wrapped in faux leather.  These can be trimmed with a fine tooth saw to fit any drawer depth.

A saw blade will easily trim the divider rails – cut with the rail channel UP.

Trim-to-Fit for peace of mind.

Contour is designed to fit and function in any drawer. This gives a designer one less thing to worry about and one more thing to enhance their closet designs.
